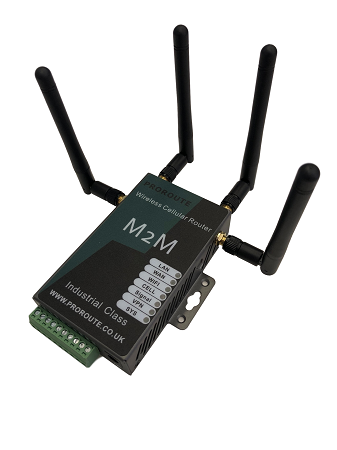

Proroute H685 4G Router

Proroute H685 Industrial 4G Router for remote access and monitoring for a wide variety of applications.  Insert your 4G SIM Card (preferably a Fixed IP SIM Card) and get high speed 4G Mobile Broadband Internet connectivity for connection to your networked devices to provide a convenient solution for 4G Internet.  The H685 4G router provides 2 x Ethernet Ports and WiFi for both wired and wireless device connectivity.

Compare

Description

The Proroute H685 Industrial 4G Router is a secure, robust and reliable industrial grade router that uses a 4G SIM card to provide a wireless broadband Internet service for remote management and monitoring applications.  It is quick and easy to configure and includes keep alive features to ensure that the router can reconnect to the 4G network in the event that the mobile network provider disconnects the router from its network.  This is a requirement of M2M / Industrial routers that are deployed away from the head office or monitoring station as 4G and 5G mobile network connections are classified as always available rather than always on, which means that at busy time the networks may disconnect permanently connected devices from the Internet.

The Proroute H685 compact 4G router has two Ethernet Ports and built-in WiFi for wired and wireless LAN connections and is configured using the user friendly web configurator.

When installing the H685 router for a monitoring or management application you will usually need to configure port forwarding to your device and for remote access we recommend using a Fixed IP SIM Card which can be supplied with either a public or private IP address.  If you are using a public IP address Fixed IP SIM Card then we recommend you spend some extra time when configuring the router to ensure that you have correctly set the firewall and security features to prevent unauthorised access to the router and connected devices.  This includes correctly configuring any connected devices security features and not just the Proroute H685 firewall and security.

Technical Specification

4G LTE Modem

Interface – 4G LTE (Upto 100Mbps) / DC-HSPA+ (Upto 42Mbps) / HSPA+ (Upto 21Mbps) / EDGE / GPRS / GSM
Peak Download Rate – 100 Mbps
Peak Upload Rate – 50 Mbps
Frequency Bands – LTE (800/900/1800/2100/2600 Mhz), WCDMA / 3G / HSPA+ (900/2100 mhz), EDGE/GPRS/GSM (900/1800/1900)
SIM Interface – 1.8V or 3V
Antenna Diversity – YES
MIMO – YES

Wi-Fi
WiFi 802.11b/g/n

SMS/Voice control
SMS/Voice features to control the router, checks status, reboot or notify of alarm incidents

Protocol Support
TCP, UDP, SMTP, POP, ICMP, FTP, PPP, PPPoE, DHCP, DDNS, DNS, SNMP, NAT, DMZ, ALG

VPN
VPN, IPSec, Open VPN, PPTP

Security
Security 64/128-bit WEP (Wired Equivalent Privacy)
WPA & WPA2 (Wi-Fi Protected Access)

Advanced Firewall Features
Network Address Translation (NAT)
Stateful Packet Inspection (SPI)
VPN Pass-through
Media Access Control
CSMA/CA with ACK Certifications
RADIUS Client Interface
Dynamic Route Feature (BGP, OSPF)

LAN
1 x 10/100M LAN port (RJ45)

WAN
1 x 10/100M WAN Port (RJ45) – can be converted to a second LAN port

Antenna
2 X antenna for Wi-Fi (includes 2 x Mag mount and 2 x Elbow Joint)
2 X antenna for Cellular (includes 2 x Mag Mount and 2 x Elbow Joint)

LED Indicators
LAN, WAN, WIFI, CELL, Signal, VPN, SYS – Activity

Configuration Interface
Web/Telnet, Local RJ45 and WiFi

UIM/SIM Card Slot
Supports 1.8V/3V UIM/SIM cards

Power
Power supply DC7V-30V, typical DC9V 1A
Power consumption:
Idle: 15mA@9VDC
Max: 250mA@9VDC
Average:105mA@9VDC

Software
Device Management
WEB interface (Internet Explorer v6 or Later; Mozilla Firefox v1.5 or Later, or other Java-enabled Browsers, Chrome, Opera, Safari, IE6)
SNMP
SYSLOG
Minimum System requirements computer with:
Windows 7, Vista, Windows XP SP2, Windows 2000 SP4, or Mac OS® X (v10.4/v10.3), Linux
Internet Explorer 6 or Mozilla Firefox
Network Interface Card / WiFi

Physical
Operating Temperature
Storage: -40°C to 80°C)
Working: -30°C to 70°C
Humidity: 95% Maximum (Non-condensing)

Dimensions
Item (L x B x H): 100mm x 60mm x 23mm (Main Case) or 110mm x 80mm x 23mm (including SMA Antenna Connectors)
Packaging (L x B x H): 260mm x 190mm x 65mm (10.3″ x 7.5″ x 2.6″)
Weight Item: 400g
Packaging: 800g total weight inlcuding product

Package Contents:

H685 4G Router
CAT5 Ethernet Cable
UK Mains Power Adapter
2 x Cellular Antennas (Mag Mount)
2 x WiFi Antenna (Mag Mount)
2 x Cellular Antennas (Elbow Joint)
2 x WiFi Antenna (Elbow Joint)
Quick start guide
