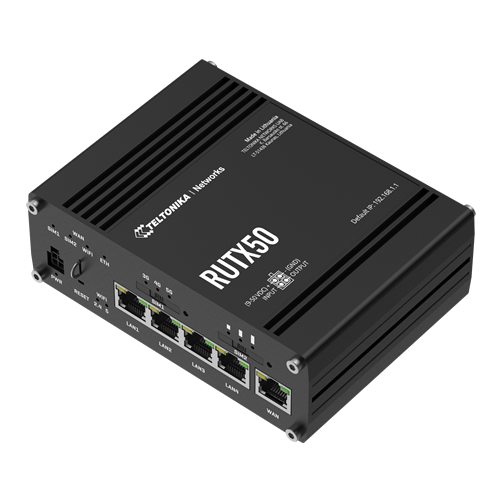

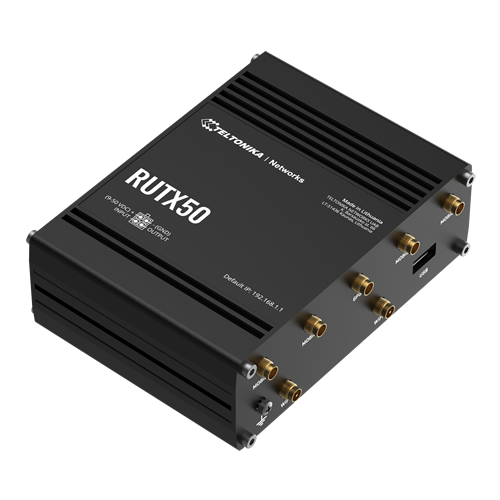

Teltonika RUTX50 5G Router
£379.00
RUTX50 Industrial 5G Router
- 5G: Ultra-high cellular speeds of up to 3.3 Gbps
- Dual SIM: Reliable communication with auto-failover to backup SIM Card
- SA & NSA: Supports both architectures to leverage the 5G infrastructure
- WiFi-5: Dual-band data throughput for up to 150 clients simultaneously
- Ultra-low latency for mission-critical applications
- Backward compatible with 4G (LTE CAT 20) and 3G network technologies
- 2-year warranty
- Remote Management System available (Teltonika RMS)
- Description
- Reviews (0)
Description
RUTX50 Unmatched Connectivity
Discover unparalleled connectivity with the Teltonika RUTX50, a robust LTE 4G/5G router designed to elevate your network experience. Leveraging advanced CAT20 technology, this powerhouse achieves lightning-fast speeds of up to 3.3 Gbps through a single mobile module.
Industrial-Grade Performance
Engineered for industrial-grade performance, the RUTX50 excels in diverse environments. From residential buildings to remote industrial installations, this router proves its versatility as an ideal choice for both primary and backup connections.
Advanced 5G Capabilities
As an advanced 5G router, the RUTX50 is tailor-made for high-capacity network settings. Perfectly suited for expansive business offices and crowded events, it delivers top-tier performance in demanding scenarios.
Lightning-Fast Ethernet Ports
Equipped with 5x 10/100/1000 Mbps Ethernet ports, the RUTX50 stands out as Teltonika’s fastest single-modem router. Seamlessly supporting dual-SIM cards for failover/auto-switch capabilities, it ensures uninterrupted connectivity.
Real-Time Signal Strength
Navigate with confidence using the real-time signal strength indicator, aiding optimal external antenna positioning. With support for 4×4 MIMO antenna connections, the RUTX50 ensures a robust and reliable mobile signal.
Swift and Secure WiFi
Experience swift 802.11ac Wave 2 WiFi with speeds reaching 867 Mbps, providing extensive wireless coverage. WPA3 security safeguards the WiFi network, ensuring a secure and reliable connection.
Seamless Roaming with Wireless Mesh
Enjoy seamless connectivity with the Wireless Mesh/Roaming feature, allowing unified WiFi SSID across large areas. Collaborate effortlessly with other Teltonika routers for a streamlined network experience.
Advanced Configuration Options
Unlock a range of advanced features, including a customizable captive portal, multiple VPN services, firewalls, and Teltonika RMS support for remote management. The intuitive RutOS web interface simplifies configuration, catering to users of all experience levels.
Hassle-Free Setup
With default Auto-APN configuration, the RUTX50 ensures a quick and hassle-free setup. Designed to accommodate users with minimal networking experience, this router prioritizes simplicity without compromising performance.
Remote Placement with Passive PoE
Enhance adaptability with support for passive PoE (9-50v) through its LAN1 port. This feature allows for remote placement away from standard power sockets, providing flexibility in installation.
Elevate your connectivity experience with the Teltonika RUTX50, a powerhouse router designed for unparalleled performance and versatility.
The RUTX50 5G Router from Teltonika is the new, high speed, Industrial 5G Router that delivers lightning fast 5G Mobile Broad Band Internet for your M2M / IoT remote monitoring and management installation.
RUTX50 Key Features
- Embedded 5G Modem
Blazing fast 5G NR Sub-6GHz and 4G LTE-Advanced Pro Cat 20 cellular radio connectivity. - WiFi
802.11b/g/n/ac Wave 2 (WiFi 5) with data transmission rates of up to 867 Mbps (Dual Band, MU-MIMO), 802.11r fast transition, Access Point (AP), Station (STA) - ETHERNET
5 x Gigabit Ethernet Ports (RJ45, LAN/WAN switchable) - USB
USB Low Energy interface - DUAL SIM
Auto-failover, backup WAN and other switching scenarios - GNSS
Global Navigation Satellite System for location services with geofencing functionality - REMOTE MANAGEMENT
Remote access, monitoring, control & VPN services via Teltonika Networks RMS - DURABLE
Wide operating temperature range for broader use cases
RUTX50 5G ROUTER STANDARD PACKAGE CONTAINS
- RUTX50 Router
- 18 W PSU
- 4 x Mobile antennas (swivel, SMA male)
- 2 x WiFi antennas (magnetic mount, RP-SMA male, 1.5 m cable)
- 1 x GNSS antenna (adhesive, SMA male, 3 m cable)
- Ethernet cable (1.5 m)
- SIM Adapter kit
- QSG (Quick Start Guide) / RMS Flyer
- Packaging box
STANDARD ORDER CODES
| Product code | HS code | HTS code | Package contains |
|---|---|---|---|
| RUTX50 000000 | 851762 | 8517.62.00 | Standard package |
AVAILABLE VERSIONS
| Product code | Region (operator) | Frequency |
|---|---|---|
| RUTX50 0***** | Europe1, the Middle East, Africa, Oceania, Brazil |
|
The price and lead-times for region (operator) specific versions may vary. For more information please contact us.
RUTX50 Specification / Features
| MOBILE | |
| Mobile module | 5G Sub-6Ghz SA/NSA 2.1/3.3Gbps DL (4×4 MIMO), 900/600 Mbps UL (2×2); 4G (LTE) – LTE Cat 20 2.0Gbps DL, 200Mbps UL; 3G – 42 Mbps DL, 5.76Mbps UL |
| Status | Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP Bytes sent/received, connected band, IMSI, ICCID. |
| SMS/Call | SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, Call utilities |
| USSD | Supports sending and reading Unstructured Supplementary Service Data messages |
| Black/White list | Operator black/white list |
| Band management | Band lock, Used band status display |
| APN | Auto APN |
| Bridge mode | Direct connection (bridge) between mobile ISP and device on LAN |
| Passthrough | Gateway assigns its mobile WAN IP address to another device on LAN |
| Multiple PDN | Possibility to use different PDNs for multiple network access and services |
| WIRELESS | |
| Wireless mode | 802.11b/g/n/ac Wave 2 (WiFi 5) with data transmission rates of up to 867 Mbps (Dual Band, MU-MIMO), 802.11r fast transition, Access Point (AP), Station (STA) |
| WiFi security | WPA3-EAP, WPA3-SAE, WPA2-Enterprise-PEAP, WPA2-PSK, WEP; AES-CCMP, TKIP, Auto Cipher modes, client separation |
| ESSID | ESSID stealth mode |
| WiFi users | Up to 150 simultaneous connections |
| Wireless Hotspot | Captive portal (Hotspot), internal/external Radius server, built-in customizable landing page |
| Wireless mesh/roaming | Wireless mesh (802.11s), fast roaming (802.11r) |
| ETHERNET | |
| WAN | 1 x WAN port (can be configured as LAN) 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover |
| LAN | 4 x RJ45 port, 10/100/1000 Mbps, supports auto MDI/MDIX crossover |
| NETWORK | |
| Network protocols | TCP, UDP, IPv4, IPv6, ICMP, NTP, DNS, HTTP, HTTPS, SMTP, SSL v3, TLS, PPP, PPPoE, SSH, DHCP, SNMP, MQTT, Wake on LAN (WOL) |
| Routing | Static routing, Dynamic routing (BGP, OSPF v2, RIP v1/v2, EIGRP, NHRP) |
| Connection monitoring | Ping Reboot, Wget Reboot, Periodic Reboot, LCP and ICMP for link inspection |
| Firewall | Port forwards, traffic rules, custom rules |
| DHCP | Static and dynamic IP allocation |
| DDNS | Supported >25 service providers, others can be configured manually |
| SSHFS | Possibility to mount remote file system via SSH protocol |
| SECURITY | |
| Authentication | Pre-shared key, digital certificates, X.509 certificates |
| Firewall | Pre-configured firewall rules can be enabled via the WebUI, unlimited firewall configuration via CLI; NAT; NAT-T |
| Attack prevention | DDOS prevention (SYN flood protection, SSH attack prevention, HTTP/HTTPS attack prevention), port scan prevention ( SYN-FIN, SYN-RST, X-mas, NULL flags, FIN scan attacks) |
| VLAN | Port and tag-based VLAN separation |
| Mobile quota control | Set up custom data limits for SIM card |
| WEB filter | Blacklist for blocking out unwanted websites, Whitelist for specifying allowed sites only |
| Access control | Flexible access control of TCP, UDP, ICMP packets, MAC address filter |
| VPN | |
| OpenVPN | Multiple clients and a server can run simultaneously, 12 encryption methods |
| OpenVPN Encryption | DES-CBC, RC2-CBC, DES-EDE-CBC, DES-EDE3-CBC, DESX-CBC, BF-CBC, RC2-40-CBC, CAST5-CBC, RC2-64-CBC, AES-128-CBC, AES-192-CBC, AES-256-CBC |
| GRE | GRE tunnel |
| IPsec | IKEv1, IKEv2, supports up to 5 x VPN IPsec tunnels (instances), with 5 encryption methods (DES, 3DES, AES128, AES192, AES256) |
| SSTP | SSTP client instance support |
| STUNNEL | Proxy designed to add TLS encryption functionality to existing clients and servers without any changes in the program’s code |
| DMVPN | Method of building scalable IPsec VPNs |
| PPTP, L2TP | Client/Server services can run simultaneously, L2TPv3 support |
| WireGuard | WireGuard VPN client and server support |
| ZeroTier | ZeroTier VPN |
| MODBUS TCP SLAVE | |
| ID filtering | Respond to one ID in range [1;255] or any |
| Allow remote access | Allow access through WAN |
| Custom registers | MODBUS TCP custom register block, which allows to read/write to a file inside the router, and can be used to extend MODBUS TCP slave functionality |
| MODBUS TCP MASTER | |
| Supported functions | 01, 02, 03, 04, 05, 06, 15, 16 |
| Supported data formats | 8 bit: INT, UINT; 16 bit: INT, UINT (MSB or LSB first); 32 bit: float, INT, UINT (ABCD (big-endian), DCBA (little-endian), CDAB, BADC), HEX, ASCII |
| MQTT GATEWAY | |
| Gateway | Allows sending commands and receiving data from MODBUS Master through the MQTT broker |
| DNP3 | |
| Supported modes | TCP Master, DNP3 Outstation |
| DATA TO SERVER | |
| Protocols | HTTP(S), MQTT, Azure MQTT, Kinesis |
| IoT PLATFORMS | |
| Clouds of things | Allows monitoring of: Device data, Mobile data, Network info, Availability |
| ThingWorx | Allows monitoring of: WAN Type, WAN IP Mobile Operator Name, Mobile Signal Strength, Mobile Network Type |
| Cumulocity | Allows monitoring of: Device Model, Revision and Serial Number, Mobile Cell ID, ICCID, IMEI, Connection Type, Operator, Signal Strength, WAN Type and IP |
| Azure IoT Hub | Can send device IP, Number of bytes send/received/ 3G connection state, Network link state, IMEI, ICCID, Model, Manufacturer, Serial, Revision, IMSI, Sim State, PIN state, GSM signal, WCDMA RSCP, WCDMA EC/IO, LTE RSRP, LTE SINR, LTE RSRQ, CELL ID, Operator, Operator number, Connection type, Temperature, PIN count to Azure IoT Hub server |
| MONITORING & MANAGEMENT | |
| WEB UI | HTTP/HTTPS, status, configuration, FW update, CLI, troubleshoot, event log, system log, kernel log |
| FOTA | Firmware update from server, automatic notification |
| SSH | SSH (v1, v2) |
| SMS | SMS status, SMS configuration, send/read SMS via HTTP POST/GET |
| CALL | Reboot, Status, Mobile data on/off, Output on/off |
| TR-069 | OpenACS, EasyCwmp, ACSLite, tGem, LibreACS, GenieACS, FreeACS, LibCWMP, Friendly tech, AVSystem |
| MQTT | MQTT Broker, MQTT publisher |
| SNMP | SNMP (v1, v2, v3), SNMP trap |
| JSON-RPC | Management API over HTTP/HTTPS |
| MODBUS | MODBUS TCP status/control |
| RMS | Teltonika Remote Management System (RMS) |
| SYSTEM CHARACTERISTICS | |
| CPU | Quad-core ARM Cortex A7, 717 MHz |
| RAM | 256 MB (100 MB available for userspace) |
| FLASH storage | 256 MB (80 MB available for userspace) |
| RUTX50 FIRMWARE / CONFIGURATION | |
| WEB UI | Update FW from file, check FW on server, configuration profiles, configuration backup |
| FOTA | Update FW |
| RMS | Update FW/configuration for multiple devices at once |
| Keep settings | Update FW without losing current configuration |
| FIRMWARE CUSTOMIZATION | |
| Operating system | RutOS (OpenWrt based Linux OS) |
| Supported languages | Busybox shell, Lua, C, C++ |
| Development tools | SDK package with build environment provided |
| LOCATION TRACKING | |
| GNSS | GPS, GLONASS, BeiDou, Galileo and QZSS |
| Coordinates | GNSS coordinates via WebUI, SMS, TAVL, RMS |
| NMEA | NMEA 0183 |
| Server software | Supports server software: TAVL, RMS |
| Geofencing | Multiple configurable geofence zones |
| USB | |
| Data rate | USB 2.0 |
| Applications | Samba share, USB-to-serial, Modbus gateway |
| External devices | Possibility to connect external HDD, flash drive, additional modem, printer |
| Storage formats | FAT, FAT32, NTFS |
| INPUT/OUTPUT | |
| Input | 1 x Digital Input, 0 – 6 V detected as logic low, 8 – 30 V detected as logic high |
| Output | 1 x Digital Output, Open collector output, max output 30 V, 300 mA |
| Events | SMS, Email, RMS |
| I/O juggler | Allows setting certain I/O conditions to initiate event |
| POWER | |
| Connector | 4-pin industrial DC power socket |
| Input voltage range | 9 – 50 VDC, reverse polarity protection, surge protection >51 VDC 10us max |
| PoE (passive) | Mode B, LAN1 Port, 9 – 50 VDC |
| Power consumption | Idle: <4 W, Max: <18 W |
| PHYSICAL INTERFACES (PORTS, LEDS, ANTENNAS, BUTTONS, SIM) | |
| Ethernet | 5 x RJ45 ports, 10/100/1000 Mbps |
| I/Os | 1 x Digital Input, 1 x Digital Output on 4-pin power connector |
| Status LEDs | 3 x connection status LEDs, 3 x connection strength LEDs, 10 x Ethernet port status LEDs, 4 x WAN status LEDs, 1x Power LED, 2 x 2.4G and 5G WiFi LEDs |
| SIM | 2 x SIM slot (Mini SIM – 2FF), 1.8 V/3 V |
| Power | 1 x 4-pin DC power connector |

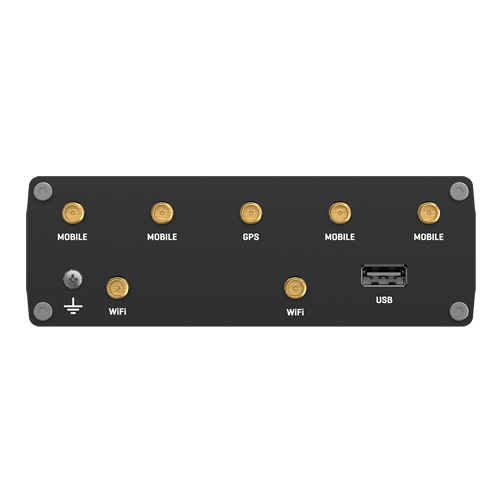

| Antennas | 4 x SMA for Mobile, 2 x RP-SMA for WiFi, 1 x SMA for GNSS |
| USB | 1 x USB A port for external devices |
| Reset | Reboot/User default reset/Factory reset button |
| Other | 1 x Grounding screw |
| PHYSICAL SPECIFICATION | |
| Casing material | Aluminum housing |
| Dimensions (W x H x D) | 132 x 44.2 x 95.1 mm |
| Weight | 533 g |
| Mounting options | DIN rail (can be mounted on two sides), flat surface placement |
| OPERATING ENVIRONMENT | |
| Operating temperature | -40 °C to 75 °C |
| Operating humidity | 10 % to 90 % non-condensing |
| Ingress Protection Rating | IP30 |
If you need a lower cost 5G solution and don’t need multiple Ethernet Ports or WiFi, then the Teltonika TRB500 5G Gateway is a single Ethernet device with embedded 5G modem to provide 5G connectivity for your M2M / IoT project with a lower cost than the RUTX50 router.
